Application of FPL-2018-1-9 Feipula woodworking engraving machine range:

The utility model is suitable for classical mahogany furniture carving, antique carved furniture, wood carving, musical instruments, gift boxes, jewelry boxes and other wood bas relief application. Suitable materials: hardwood, wood, acrylic, horn, marble, copper and aluminum and other nonferrous metals.

What are the performance of FPL-2018-1-9:

Multi head engraving machine is designed for mass production, high precision ball screw drive, stable performance and high precision.

The whole machine adopts the steel structure, the rigidity is not deformed, the working table top backing plate, the strength is big.

The main shaft adopts the dust and water proof high power frequency conversion water cooling motor, the noise is small, strong and powerful, maintenance free, and can realize continuous operation.

Intelligent processing cross-border protection, to prevent mechanical collision phenomenon caused by the over processing format layout design.

Intelligent high-speed module high-speed operation, can achieve power outage recovery, breakpoint continued carving, the next day processing, convenient and labor saving.

Detail parameter configuration of the woodworking engraving machine:

Model FPL-2018-1-9

Covers an area of 2.5m*2.3m*1.5m

X travel 200mm*9

Y travel 2000mm

Z travel 120mm

The table structure of aluminum clamping table

Drive mode high precision screw drive

Phi 3, Phi commandhpgl used 4, 6, 12.7, Phi Phi

Positioning accuracy 0.02mm

Optional spindle power 1.5kw, 2.2kW, 3.0kw, etc.

Working voltage 220v/380v

Working mode step / servo (optional)

Spindle speed 4000-24000rpm/min

Max working speed 6000mm/min

Shanghai Weihong engraving machine operating system dedicated system

Note: equipment processing table size can be more customer requirements! Specifications are subject to change without prior notice (configuration to the contract shall be subject to the weight of the actual shipment).

Optional accessories:

1, dust cleaning device

2, setting device

3, pulse wheel

4, lubrication system

5, vacuum adsorption device

How to quickly get started using woodworking engraving machine:

First, for carving patterns, professional software CNC programming, can simplify the process of engraving and can achieve the precision and speed of the control of the control.

Two, for the general woodworking engraving machine imported equipment have process simulation processing procedure before processing, this can avoid the quality problems of fault and error processing appears, ensure wood carving are qualified products and parts.

Three, automatic tool change and the design of the tool magazine can be a rapid engraving, processing efficiency to bring a certain process. The principle is that the tool magazine can shorten the tool changing time, the standard 8 tool configuration (according to the requirements to configure).

Part of the engraving of the sample show:

Wooden door relief sample

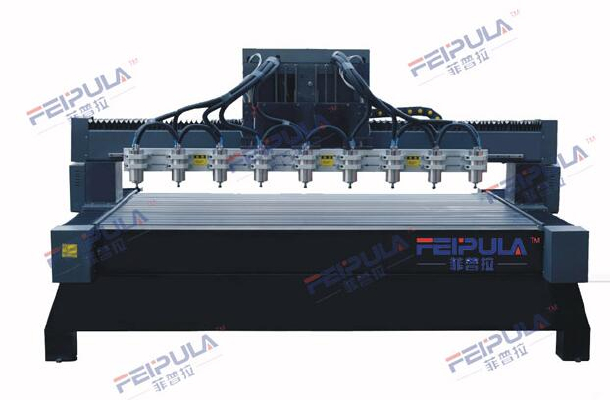

Woodworking engraving machine

Relief carving sample

FPL-2018-1-9 woodworking engraving machine price how many?

Quotation needs to be determined in accordance with customer specific configuration, if you need to offer direct contact us, we are in accordance with your specific needs of equipment offer, contact directly in contact with the.
