- Place of Origin: suzhou
- Brand Name: peipula
- Model Number: FPL-1318-2-4

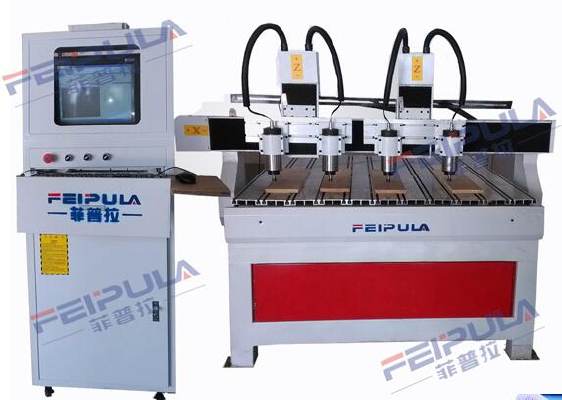

Feipula FPL-1318-2-4 long range woodworking engraving machine:
Feipula woodworking engraving machine, suitable for European furniture, relief, openwork, antique carved furniture, photo engraving studio post decoration decoration industry, soft decoration, mold processing, commonly used in ordinary hardwood category, wood, acrylic, horn, ivory,
Marble, copper, aluminum and other metal engraving technology, etc.
Performance summary of FPL-1318-2-4 multi head woodworking engraving machine:
Multi head engraving machine is designed for mass production, high precision ball screw drive, stable performance and high precision.
The whole machine adopts the steel structure, the rigidity is not deformed, the working table top backing plate, the strength is big.
The main shaft adopts the dust and water proof high power frequency conversion water cooling motor, the noise is small, strong and powerful, maintenance free, and can realize continuous operation.
Intelligent processing cross-border protection, to prevent mechanical collision phenomenon caused by the over processing format layout design.
Intelligent high-speed module high-speed operation, can achieve power outage recovery, breakpoint continued carving, the next day processing, convenient and labor saving.
Feipula FPL_1318-2-4, FPL_1818-2-6, FPL_2018-2-8 detailed configuration parameters:
Model FPL_1818-2-6 FPL_2018-2-8 FPL_1318-2-4
Covers an area of 2.3m*2.4m*1.5m 2.5*2.4m*1.5m 1.8m*2.4m*1.5m
X travel 300mm*6 250mm*8 300mm*4
Y travel 1800mm 2000mm 1800mm
Z travel 120mm 120mm 120mm
The table structure of aluminum clamping table aluminum clamping table aluminum clamping table
Drive mode high precision screw drive high precision screw drive high precision screw drive
The commonly used 3 - 12.7 of the diameter of the handle of the 3 - 12.7 3 - 12.7 of Phi Phi
Positioning accuracy 0.02mm 0.02mm 0.02mm
Optional spindle power 4.5kw - 1.5KW and other 4.5kw - 1.5KW and other 4.5kw - 1.5KW and so on
Working voltage 220v/50Hz 220v/50Hz 220v/50Hz
Working mode step / servo (optional) step / servo (optional) step / servo (optional)
Spindle speed 0-24000rpm/min 0-24000rpm/min 0-24000rpm/min
Maximum operating speed 12000mm/min 12000mm/min 12000mm/min
Shanghai Weihong engraving machine dedicated operating system system of Shanghai Weihong engraving machine dedicated system
Shanghai Weihong engraving machine dedicated system
Note: equipment processing table size can be more customer requirements! Specifications are subject to change without prior notice (configuration to the contract shall be subject to the weight of the actual shipment).
Can also choose the accessories:
1, dust cleaning device
2, setting device
3, vacuum adsorption device
4, the number of free choice of spindle
5, servo motor
Carved sample show:
Carving samples
Relief carving sample
4 working drawings of woodworking engraving machine
Why engraving machine is very different in price?
Eighty percent of customers to buy things when they are more than three goods. Woodworking engraving machine woodworking machinery of the purchase is certainly a comparison and comparison. At this time customers will find a lot of problems, your models look almost ah, how the price difference so much?
The larger the general situation of the enterprise, the higher the price. Is the same configuration, the same model, the price will be much higher. The reason is that the greater the operating costs of enterprises will be higher. Only this part of the cost plus sales of products. Generally large enterprises have independent after-sales, because a lot of places are independent of the calculation (such as after the sale of the cost is statistics to the sales department, with sales no relationship. Because after more than a lot of after-sales process), the cost is also relatively more.
Another important reason is the configuration! Many parts and systems are divided into many manufacturers, domestic or imported. For example, engraving machine commonly used Y axis linear guide, can be divided into square rail and compasses. The use of side rail than the compasses of strong stability, high accuracy, because the price is more expensive, especially imported square rail; in the operating system, the operating system in general and convenient DSP operating handle; water cooled spindle 3KW, or 4.5kw, or more power; with the general profile table, or vacuum table there are many different; electrical components are affecting the price.
But customers buy engraving machine, not only to see the price. Must be based on their own product characteristics, if it is a very high degree of accuracy requirements, you can not choose the low distribution models. If it is basically very simple not too high requirements of the operation, selection of high models, is a waste. Customers to buy the machine must be good advice to understand, to buy the most suitable model is the most important!
FPL-1318-2-4 woodworking engraving machine how much money?
Quotation needs to be determined in accordance with customer specific configuration, if you need to contact us directly, we are based on your specific configuration of the equipment offer.
